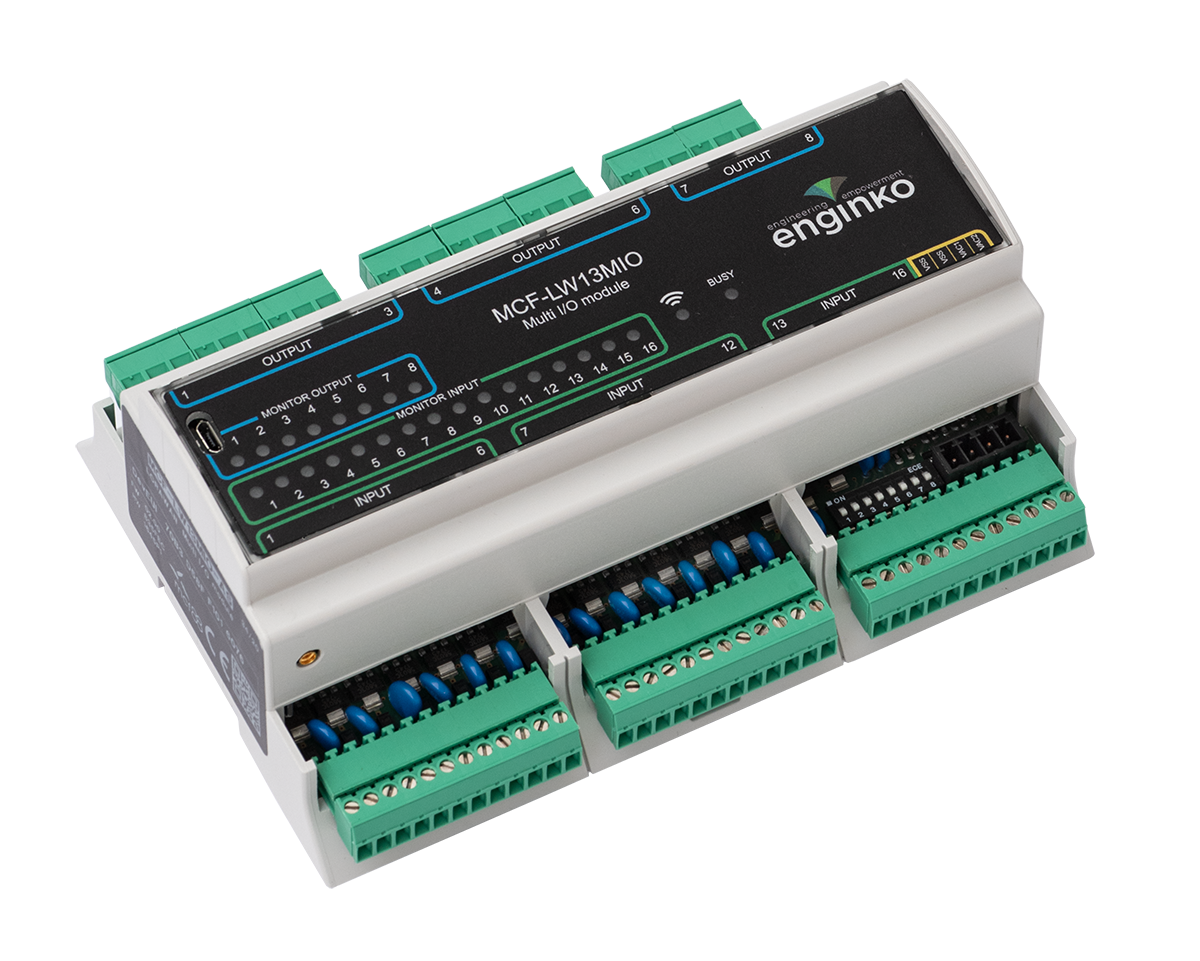

Multi I/O Module MCF-LW13MIO

The MCF-LW13MIO is a high-performance LoRaWAN® multi I/O module, ideal for various applications including industrial process control, home automation, water treatment, and agriculture irrigation. It transmits the state of its 16 inputs and controls 8 outputs, all galvanically isolated for enhanced safety and efficiency.

Specifications

CPU: Cortex M0
Memory: 32KB EEProm, 96KB Flash
Security: AES 128-bit encryption
Connectivity: Class C LoRaWAN® stack compatible with EU868, AS923, AU915, US915
Inputs: 16 opto-isolated inputs (AC-DC range 5-24Vac/dc)
Outputs: 8 relay outputs with COM, NO, NC contacts carrying 5Amp@230Vac
Power Supply: 24Vac/dc
Operating Conditions: Temperature -10 to +70°C, Storage Temperature -20 to +80°C
Features: USB port for IoT node setup and firmware upgrade, CANBUS interface
Mounting: DIN (EN 60715) enclosure 9 modules

Summary

The MCF-LW13MIO offers outstanding flexibility and reliability for a wide range of applications, ensuring efficient and secure control of multiple inputs and outputs with advanced LoRaWAN® connectivity.
