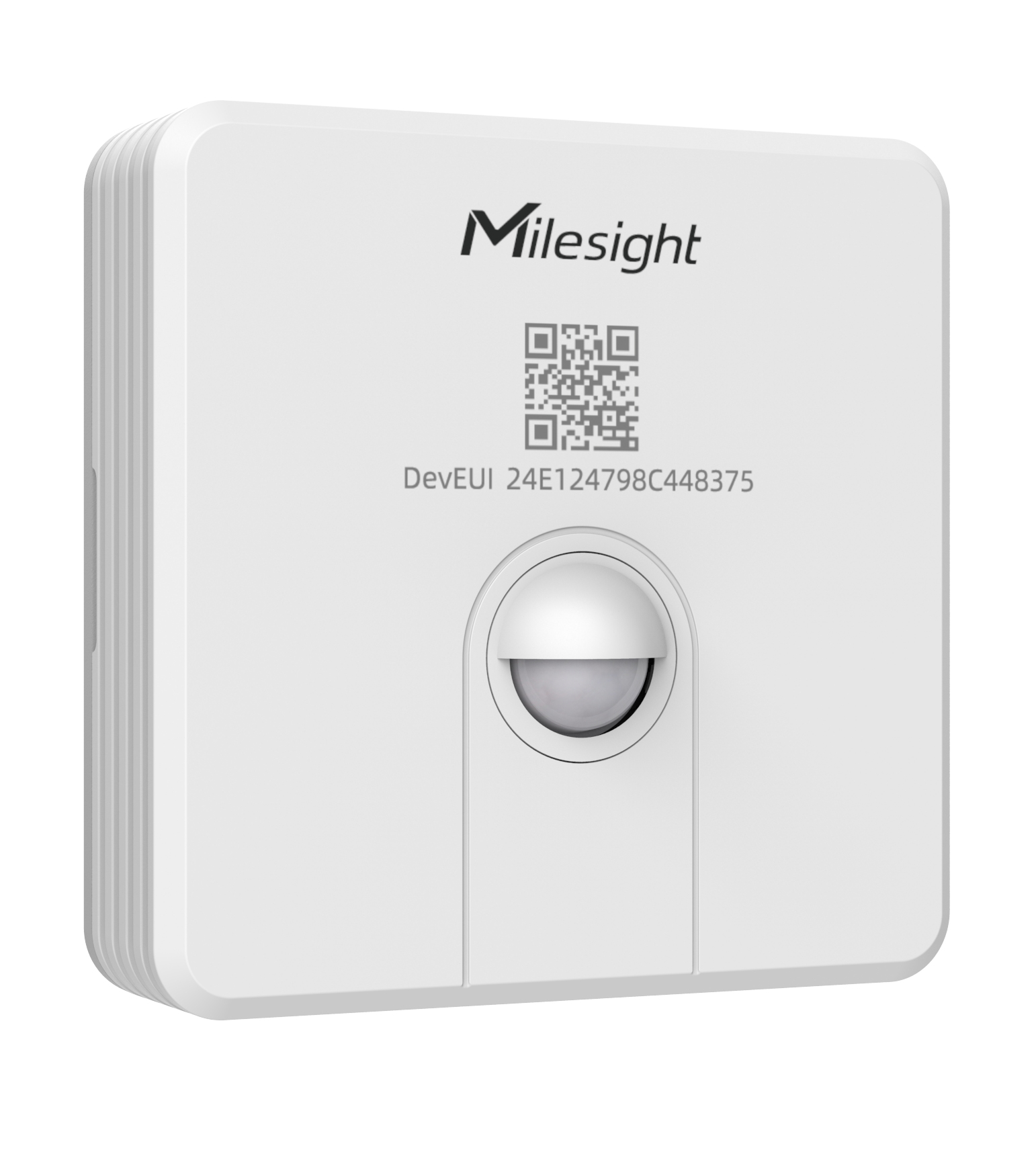

Motion, Temperature and Humidity Sensor WS203
The WS203 is a versatile environmental monitoring device, integrating motion and temperature/humidity (TH) sensors. Using passive infrared (PIR) technology, it detects motion within an 8-meter range, triggering TH detection and periodically reporting the environmental status over a LoRaWAN® network.
Applications or Uses
The WS203 Motion & TH Sensor is ideal for smart offices, buildings, and hospitals. It provides real-time environmental monitoring, ensuring optimal comfort and safety by accurately detecting motion, temperature, and humidity levels.Advantages of Using the Product
Using the WS203 Motion & TH Sensor offers several benefits, including efficient real-time monitoring of environmental conditions and motion detection. Its dual sensors provide comprehensive data, while the LoRaWAN® and Milesight D2D wireless transmission ensure reliable connectivity. With a long battery life of up to 5 years and robust performance in a wide temperature range, it is a reliable and cost-effective solution for various applications.Specifications
- Wireless Transmission: LoRaWAN®, Milesight D2D
- Frequency: Multiple bands including CN470, EU868, US915
- Detection Area: 120° horizontal, 100° vertical; up to 6m range
- Temperature Range: -20°C to 60°C, Accuracy: ±0.2°C
- Humidity Range: 0% to 100% RH, Accuracy: ±2% RH
- Power Supply: 4000 mAh ER18505 Li-SOCl2 battery, up to 5 years life
- Dimensions: 73 x 73 x 26 mm (without PIR cover)
- Ingress Protection: IP30
