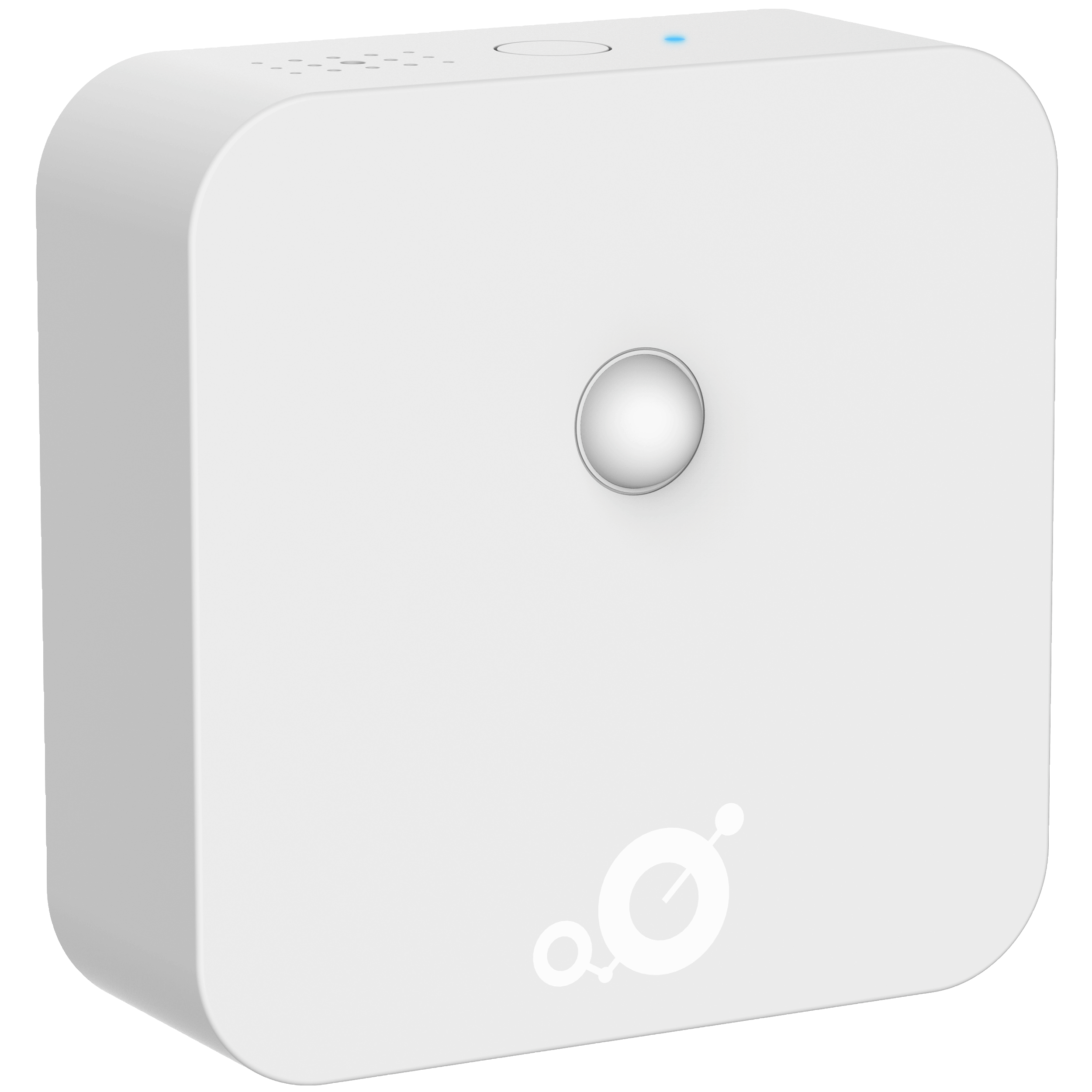

Motion Detector Sensor MS10
The MerryIoT Motion Detection MS10 is a sophisticated sensor utilizing dual Passive Infrared detectors and a Fresnel Lens. It’s designed for a wide range of applications including security and occupancy monitoring in homes, buildings, and various facilities.
Specifications
- Compliance: LoRaWAN 1.0.3
- Detection: 123° horizontal, 93° vertical angle; range up to 7 meters
- Additional Sensors: Temperature (±1°C accuracy), Humidity (±5% accuracy), and a three-axis linear accelerometer
- Power: 2 x AA Alkaline batteries, 5400 mAh, about 3 years life
- Frequency: EU 868 MHz, US 902-928 MHz
- Environmental Rating: IP40 equivalent
- Dimensions: 70 mm x 25 mm x 70 mm, Weight: 91 g
- Certifications: CE, FCC, IC approved
