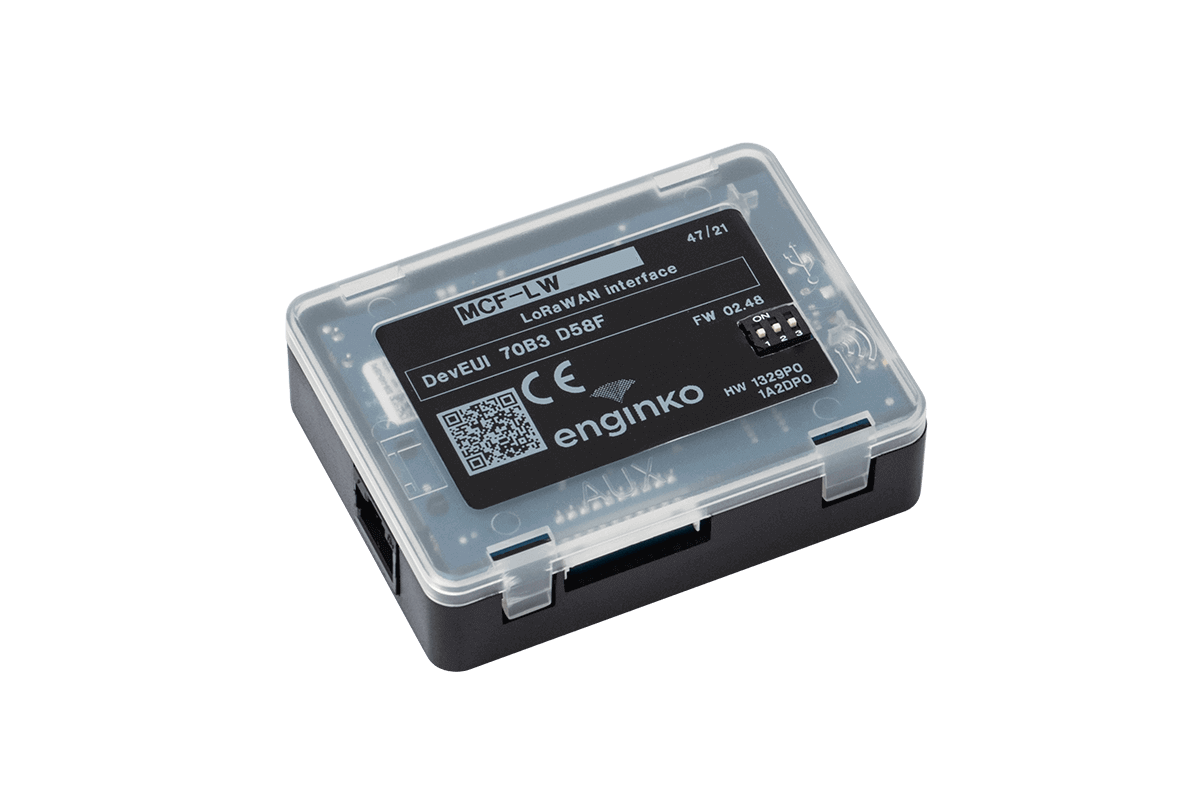

Modbus To Lorawan Interface MCF-LW06485

The MCF-LW06485 is a highly versatile interface that connects any Modbus device to a LoRaWAN® platform. It allows for reading and writing any register of the connected Modbus device remotely, making it ideal for industrial applications.

Specifications

CPU: Cortex M4
Memory: 32KB EEProm, 1MB Flash
Security: AES 128-bit encryption
Power: Rechargeable LiPo battery, 10-36Vdc power supply
Connectivity: Class C LoRaWAN® stack compatible with EU868, AS923, AU915, US915
Modbus: RTU RS485, supporting up to 512 bytes of data from up to 31 slaves
Additional Features: USB On The Go for IoT node setup and firmware upgrade
Operating Temperature: -10 to +70°C, Storage Temperature -20 to +80°C
Dimensions: 81 x 60 x 24mm

Summary

The MCF-LW06485 provides a powerful and flexible solution for remote industrial interface and process supervision, facilitating seamless integration of Modbus devices into LoRaWAN® networks.
