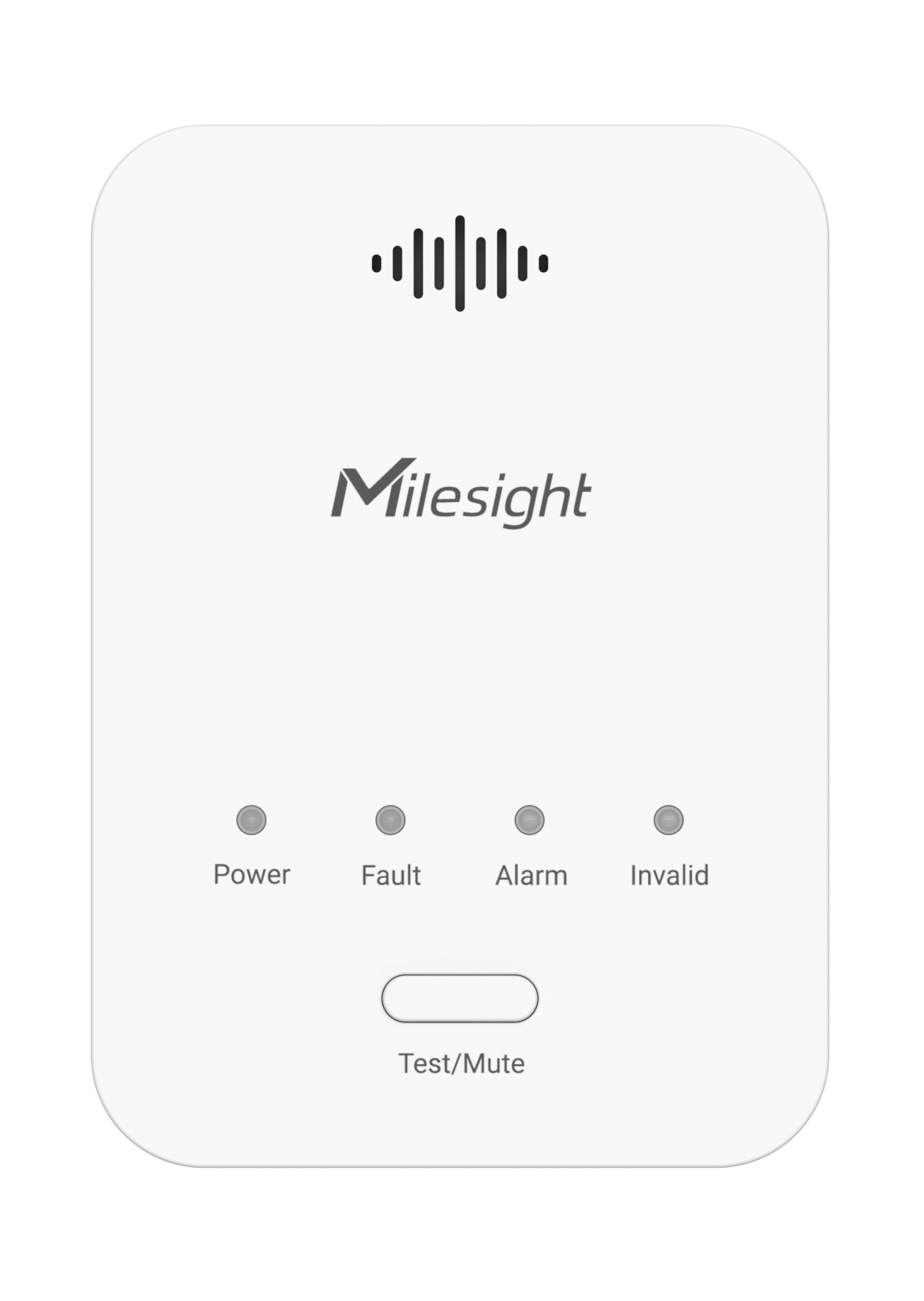

Methane Gas Sensor GS101
The GS101 is an advanced LoRaWAN® residential gas detector designed to detect natural gas leaks and send alarms. It provides dual alarms with LED lights and a buzzer, and can control outputs like gas valves and vent fans to prevent accidents.
Specifications
- Wireless Transmission: LoRaWAN®
- Frequency: Multiple bands including EU868, US915
- Detecting Gas: Methane (CH4) via semiconductor sensor
- Warm-up Time: About 180s
- Alarm Level: 8% LEL
- Alarm Type: Sound and light, with 85 dBA volume at 1 meter
- Output Signal: Relay and solenoid valve outputs
- Button: Test/Mute/Reset/Reboot
- LED Indicators: Power, Fault, Alarm, Invalid
- Configuration: Mobile app via NFC
- Storage: 800 historical records
- Power: 12VDC, 1A
- Operating Conditions: Temperature -10°C to +55°C, Humidity 0-95% (non-condensing)
- Ingress Protection: IP30
- Dimensions: 120 × 85 × 32.5 mm, Material: PC+ABS (Flame Retardant)
