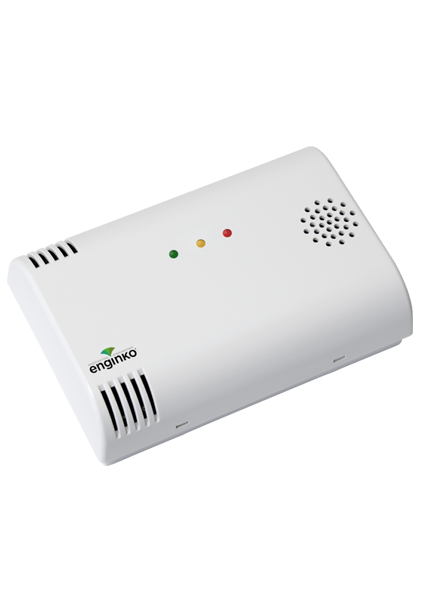

Indoor Environmental Voc/Lux/CO2 Sensor MCF-LW12CO2E
The MCF-LW12CO2E is a comprehensive indoor environmental sensor designed for monitoring various air quality parameters. It integrates a light sensor and measures temperature, humidity, pressure, air quality (IAQ, bVOC), and CO2 levels. The device is equipped with LEDs to indicate air quality, making it suitable for applications such as building automation and condition monitoring.
Applications or Uses
The MCF-LW12CO2E sensor is ideal for a range of applications including building automation, condition monitoring, and environmental quality assessment. It ensures optimal air quality in offices, schools, hospitals, and other indoor environments by providing real-time data on various environmental parameters.Advantages of Using the Product
The MCF-LW12CO2E sensor is ideal for a range of applications including building automation, condition monitoring, and environmental quality assessment. It ensures optimal air quality in offices, schools, hospitals, and other indoor environments by providing real-time data on various environmental parameters.Specifications
- CPU: Cortex M0+
- Memory: 32Kb EEProm, 64k Flash
- Security: AES 128-bit encryption
- Connectivity: LoRaWAN® Class A 1.0.2, compatible with EU868, AS923, AU915, US915
- Measurement Range:
- Temperature: -10 to 60°C
- Humidity: 0-100%
- Pressure: 300-1100hPa
- Light sensor: 0.01-80000 lux
- IAQ index: 0-500
- bVOC: 500ppb-16700ppm
- CO2: 300-5000 ppm
- Battery: 21600mAh, up to 8 years life
- Features: LED air quality indicators, configurable thresholds, NFC for setup, firmware upgrade, and data reading
- Installation: Indoor
- Dimensions: 120x80x25mm
- Weight: ~225g
