Enhancing Vibration Analysis with Ultrasound Technology

Ultrasound and vibration analysis

We all recognize the value of precise and timely condition monitoring for maintaining the health of industrial machinery. Vibration analysis has been a widely adopted technique for assessing rotating equipment; however, recent advancements in ultrasound technology provide a powerful supplementary approach for early fault detection and a more comprehensive understanding of machinery. In this blog post, we will delve into the technical aspects of ultrasound analysis and explain how it enhances traditional vibration analysis for industrial maintenance professionals.

The science behind ultrasound analysis

Ultrasound analysis relies on high-frequency sound waves (typically in the range of 20 kHz to 100 kHz) to inspect the internal structure of mechanical components such as bearings, gearboxes, and pumps. An ultrasonic transducer, consisting of piezoelectric materials, generates sound waves that propagate through the equipment and reflect off internal surfaces. By analyzing the time and amplitude of the returning echoes, technicians can identify changes in the machinery’s internal structure and pinpoint potential issues.

Early fault detection with ultrasound analysis

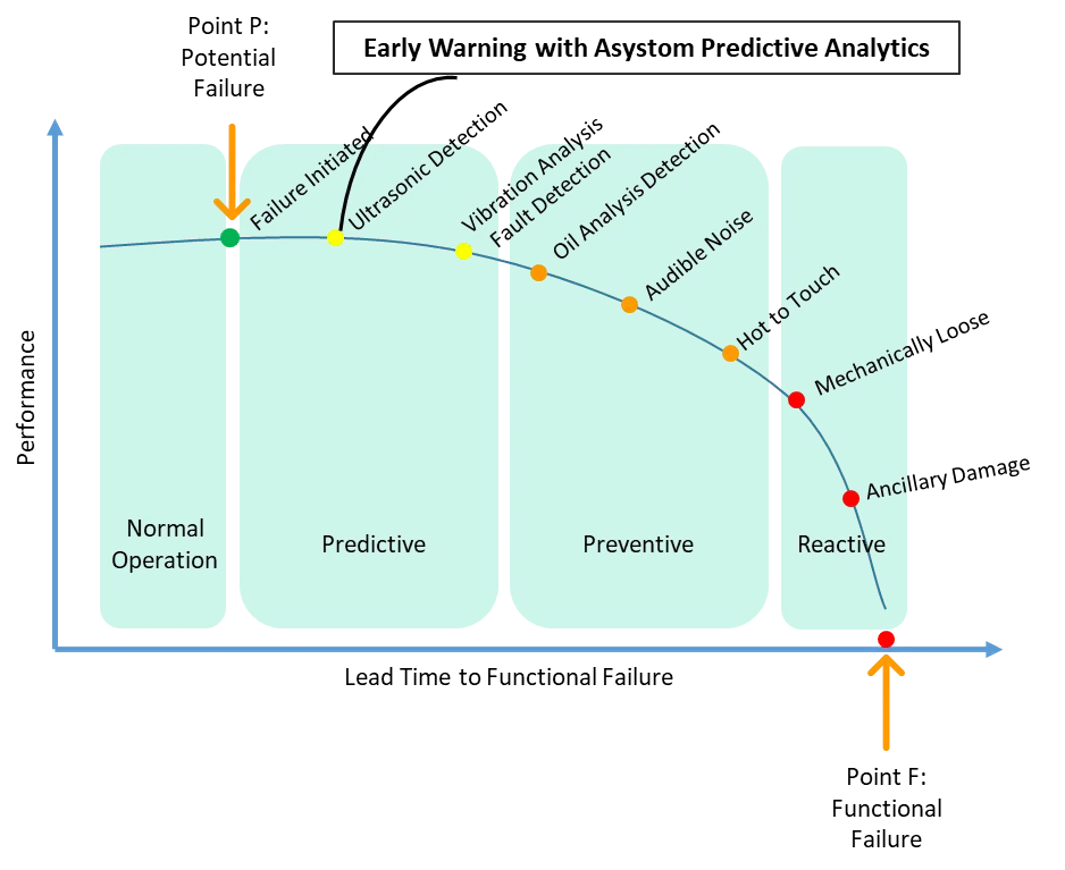

Ultrasound analysis offers superior sensitivity compared to traditional vibration analysis, enabling the detection of issues at an earlier stage. While vibration analysis is effective at identifying problems once they have manifested in significant changes in the equipment’s vibration signature, ultrasound analysis can detect subtle friction, turbulence, and impact events that may not yet produce appreciable vibration patterns. This early detection allows maintenance professionals to intervene before issues escalate, reducing downtime and repair costs.

Complementing vibration analysis for a comprehensive assessment

Ultrasound analysis and vibration analysis are complementary techniques, each possessing its unique strengths and limitations. Vibration analysis excels at diagnosing issues related to rotating components, such as imbalance, misalignment, and looseness, by measuring the acceleration, velocity, and displacement of machine vibrations.

Ultrasound analysis, on the other hand, is highly effective at detecting issues related to lubrication, cavitation, and bearing defects, as well as assessing the integrity of seals, valves, and steam traps. By combining both techniques, maintenance professionals can obtain a more complete and accurate picture of equipment health, enabling more effective decision-making and targeted maintenance actions.

Advantages of ultrasound analysis in various applications

In addition to its ability to detect issues earlier than vibration analysis, ultrasound analysis offers several other advantages in various industrial applications:

Leak detection: Ultrasound technology is highly effective in detecting leaks in compressed air systems, vacuum systems, and pressurized vessels. By pinpointing and quantifying these leaks, maintenance teams can significantly reduce energy waste and improve system efficiency.

Electrical inspection: Ultrasonic analysis can also identify partial discharge, arcing, and corona discharge in electrical equipment, such as switchgears and transformers, helping prevent equipment failure and potential safety hazards.

Valve and steam trap assessment: Ultrasound technology can evaluate the condition of valves and steam traps, ensuring proper operation and minimizing energy losses.


By integrating ultrasound analysis into their condition monitoring toolkit, industrial maintenance professionals can enhance the capabilities of traditional vibration analysis, leading to earlier fault detection and a more comprehensive understanding of machinery health. This combination of techniques allows for more effective decision-making and targeted maintenance actions, ultimately reducing downtime, extending equipment life, and improving overall operational efficiency.
