Early Detection of Ball Bearing Failure

Ball bearing failure detection

The early detection of ball bearing failure is a critical aspect of industrial machine maintenance. By leveraging advanced techniques like vibration and ultrasound analyses, Industrial Maintenance Engineers, Managers, and Plant Managers can predict and prevent costly breakdowns, ensuring optimal machine performance and reliability. This technical blog post delves into how these two powerful techniques can be used to predict ball bearing failure in industrial machinery.

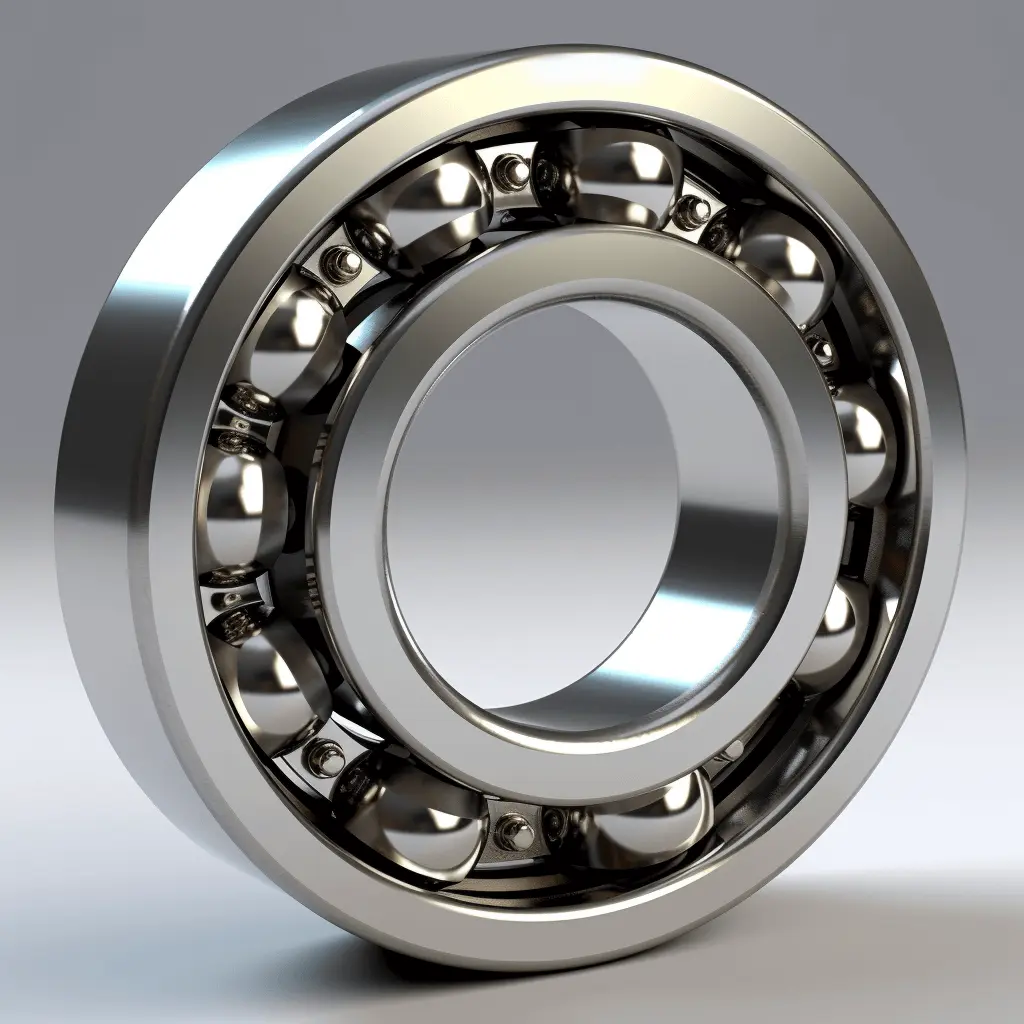

  1. The Role of Ball Bearings in Industrial Machinery:

Ball bearings play a crucial role in reducing friction and supporting radial and axial loads in industrial machinery. As such, their failure can have severe implications, from decreased machine performance to unexpected downtime. Therefore, it’s paramount to monitor their condition regularly and take proactive measures to prevent failure.

  1. Vibration Analysis for Ball Bearing Monitoring:

Vibration analysis is a non-destructive testing method that provides valuable insights into machine condition by analyzing the vibratory signals. Here’s how it can help predict ball bearing failure:

  • Detecting Damage Indicators: Specific frequencies within the vibration spectrum correlate to particular bearing faults. For instance, an increased vibration at the ball pass frequency outer race (BPFO) often indicates outer raceway damage.
  • Identifying Wear and Tear: Increased vibration levels over time can indicate progressive wear and tear, a precursor to bearing failure.
  • Tracking Anomalies: Sudden changes in vibration patterns can signal a damaged or cracked bearing, enabling immediate action.

For in-depth understanding, consider reviewing “Vibration Analysis, Instruments, and Signal Processing” by Jyoti Kumar Sinha.

  1. Ultrasound Analysis for Ball Bearing Monitoring:

Ultrasound analysis is an effective method for early detection of bearing failure. By converting high-frequency sounds into electrical signals, this technique identifies anomalies not always detectable through vibration analysis.

  • Identifying Lubrication Issues: An increase in ultrasound levels often indicates inadequate lubrication, a common cause of bearing failure.
  • Detecting Early-stage Faults: Even minor defects can cause an increase in ultrasound emissions, enabling the detection of early-stage bearing faults.
  • Monitoring Bearing Condition: Regular ultrasound analysis can track the bearing’s condition over time, signaling any potential issues.

Refer to “Airborne and Structure-Borne Ultrasound Handbook” by Allan Rienstra for a comprehensive understanding of ultrasound analysis.

  1. Combining Vibration and Ultrasound Analyses:

By combining both vibration and ultrasound analyses, maintenance professionals can leverage the strengths of each technique to ensure a more robust and accurate prediction of bearing failure.

  • Improved Accuracy: While vibration analysis excels at identifying the type of bearing fault, ultrasound can detect faults at an earlier stage.
  • Comprehensive Monitoring: Regular monitoring using both methods can provide a more holistic view of bearing health.
  • Early Intervention: The combined data allows for more timely maintenance decisions, preventing unexpected failures and costly downtime.
  1. Case Study: Real-World Application:

Consider a case where an industrial plant used a combination of vibration and ultrasound analyses to detect a bearing fault in a critical centrifugal pump. The ultrasound analysis indicated increased emission levels, suggesting a lubrication issue. Simultaneously, the vibration analysis revealed increased levels at the BPFO, indicating potential outer raceway damage. By identifying these anomalies early, the plant was able to schedule maintenance and prevent a catastrophic failure.

Conclusion:

Vibration and ultrasound analyses are powerful tools in predictive maintenance, allowing for the early detection and prevention of ball bearing failures in industrial machinery. By understanding and implementing these techniques, Industrial Maintenance Engineers, Managers, and Plant Managers can ensure the smooth operation of their machines, prevent unexpected downtime, and optimize overall plant performance.
