Outdoor environmental sensor

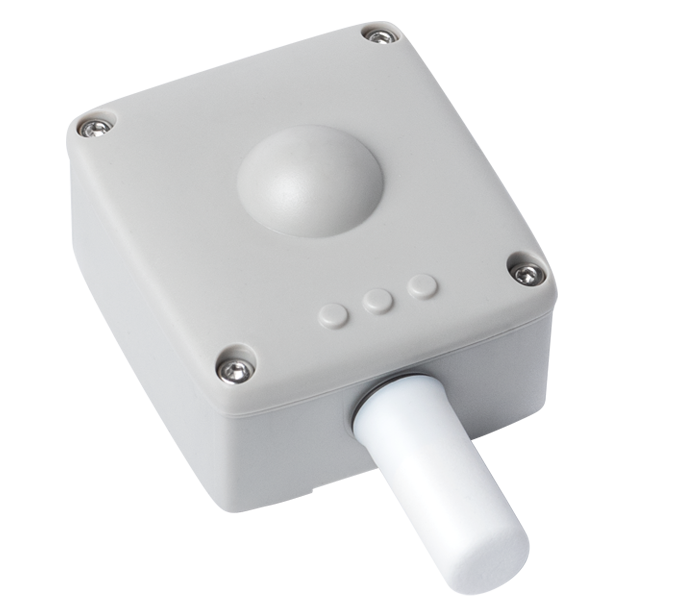

Temperature And Humidity Sensor EGK-LW22TWP00

The EGK-LW22TWP00 is a compact and robust LoRaWAN® outdoor environmental sensor. It is designed to accurately measure temperature, humidity, and pressure, making it ideal for applications like weather stations, urban monitoring, air quality control, and industrial or farming projects.

Applications or Uses

The EGK-LW22TWP00 Outdoor Environmental Sensor is perfect for weather stations, urban monitoring, air quality control, and various industrial or farming projects. It provides accurate measurements of temperature, humidity, and pressure, helping to monitor and manage environmental conditions effectively.

Advantages of Using the Product

Using the EGK-LW22TWP00 Sensor offers several benefits, including high-precision measurement of temperature, humidity, and pressure. Its robust design with an IP67 waterproof rating ensures durability in harsh outdoor conditions. The sensor features a long battery life of up to 5 years with typical usage, and the BLE 5.0 interface allows for easy configuration. Flexible mounting options make it versatile for various applications.

Specifications

  • CPU: ARM Cortex M4
  • LoRaWAN®: 1.0.2 Class A, EU868
  • Measurement Range:
    • Temperature: -30 to +70°C
    • Humidity: 0% to 100%
    • Pressure: 300 to 1250 hPa
  • Features: Magnetic start-up, IP67 waterproof rating, BLE 5.0 interface for configuration
  • Power: Primary battery, 5 years life with typical usage
  • Mounting: Flexible pole or surface mount
  • Dimensions: 98 x 58.5 x 39 mm
  • Weight: 95g

Summary

The EGK-LW22TWP00 Outdoor Environmental Sensor offers precise and durable weather monitoring capabilities, with a long battery life and IP67 waterproof rating, suitable for diverse outdoor applications.
