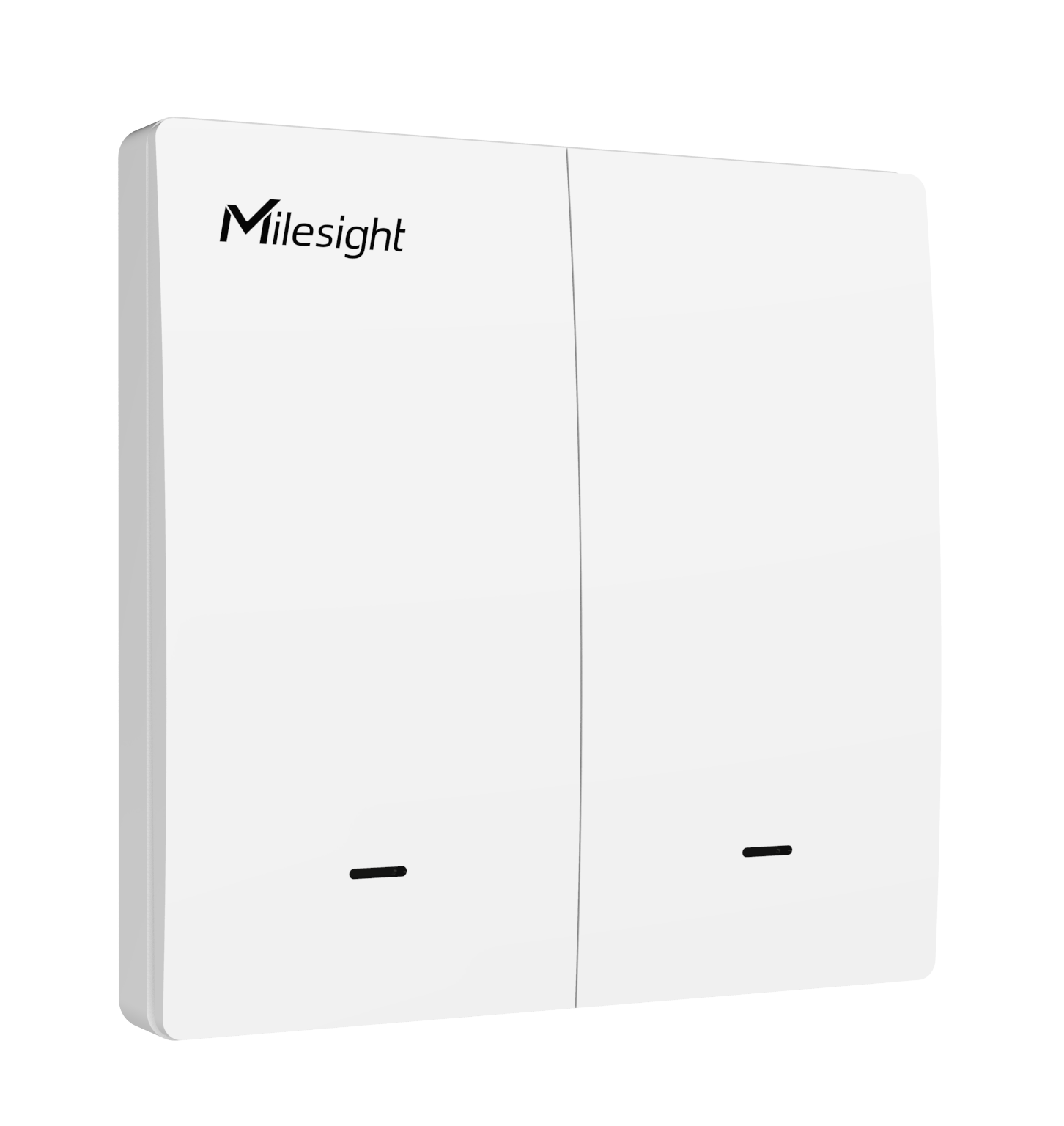

Smart Wall Switch WS50x Series

The WS50x Series is a LoRaWAN® smart wall switch for local and remote control of lights and electrical appliances. It comes in two standard sizes to easily replace traditional wall switches. Compatible with Milesight LoRaWAN® gateway and IoT Cloud solution, it offers control via webpage or mobile app.

Specifications

Features: Local or remote control via high reliability relay, current/voltage/power measurement, overload protection
Built-in Switch Indicator: Easy to use in dark environments
Wireless Transmission Range: Up to 15 km line of sight
NFC: One-touch configuration
Power: Supports circuits with 3-Wire (Neutral Required) and 2-Wire (Non-neutral)
Maximum Current: Inductive 5 A per gang, total 10 A; Resistive 10 A per gang, total 10 A
Rated Load: Max 1000 W per gang, total up to 2000 W
Compliance: Milesight D2D protocol for ultra-low latency control without a gateway

Summary

The WS50x Series Smart Wall Switch is a versatile and user-friendly solution for smart control of lighting and appliances, offering extensive control options, energy monitoring, and overload protection in a sleek design.
