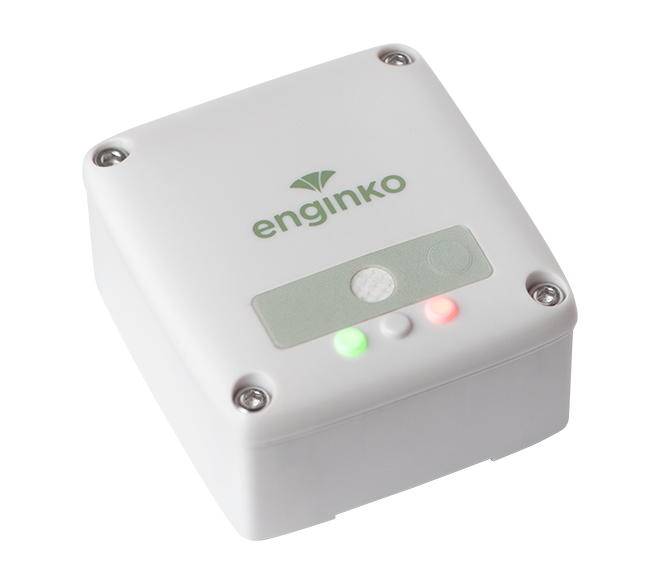

Cold Chain Temperature and Humidity Sensor EGK-LW22CCM

The EGK-LW22CCM is a sophisticated LoRaWAN® temperature and humidity sensor, designed for the rigorous demands of cold chain monitoring. This compact device is crucial for maintaining optimal conditions in environments ranging from food service to pharmaceutical storage, ensuring precise control over temperature and humidity.

Applications or Uses

The EGK-LW22CCM Sensor is ideal for cold chain monitoring in food service, pharmaceutical storage, and other sensitive environments. It ensures precise temperature and humidity control, helping to maintain product integrity and safety throughout the supply chain.

Advantages of Using the Product

Using the EGK-LW22CCM Sensor offers several benefits, including high-precision measurement of temperature and humidity over a wide range. Its robust IP65 waterproof design ensures durability in harsh conditions, and the long battery life of up to 4 years with replaceable batteries enhances its reliability. The sensor’s data logging capability allows storage of up to 3000 measurements, which can be retrieved via Bluetooth or LoRaWAN®, providing flexibility in data management.

Specifications

  • CPU: ARM Cortex M4
  • LoRaWAN®: Class A, Version 1.0.2, EU868
  • Measurement Range:
    • Temperature: -40°C to +70°C
    • Humidity: 0% to 100%
  • Power: 2xCR123A replaceable batteries, 4 years battery life
  • Connectivity: LoRaWAN® and Bluetooth
  • Data Logging: Up to 3000 measurements stored, retrievable via BLE or LoRaWAN®
  • Dimensions: 64.5×58.5×32.5mm
  • Weight: 95g
  • IP Rating: IP65, robust and waterproof
  • Operating Conditions: Temperature -40°C to +70°C, Humidity 0-100%

Summary

The EGK-LW22CCM is a sophisticated LoRaWAN® temperature and humidity sensor, designed for the rigorous demands of cold chain monitoring. This compact device is crucial for maintaining optimal conditions in environments ranging from food service to pharmaceutical storage, ensuring precise control over temperature and humidity.
